Flame Pre-Treatment Machines

The basic requirement for a good adhesion of the printing ink is not only a uniform surface tension, but also that the glass surface is clean and completely free of graphite, silicone, dust and grease.

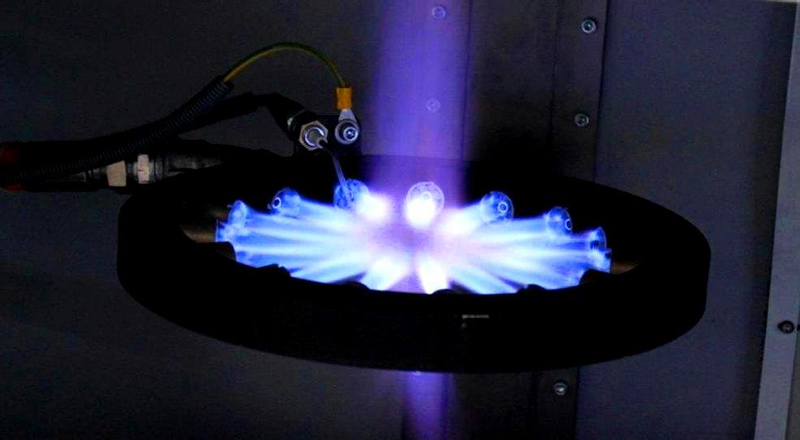

This is achieved by a flame-treatment of the glass just prior to printing. By flaming with an open, clean burning gas flame the water in the surface can be driven out and possible impurities can be reduced. This improves the adhesion of the applied Polymers significantly.

Beverage bottles have usually run through a cold-end-treatment, to protect their surface from damage caused by friction. However, this cold-end-treatment prevents a lasting adhesion of inks to this glass surface. Therefore, a pre-treatment with a gas flame is absolutely necessary to achieve enough bonding areas for the adhesive and to create enough surface energy which is decisive for a proper coating.

What We Can Offer You:

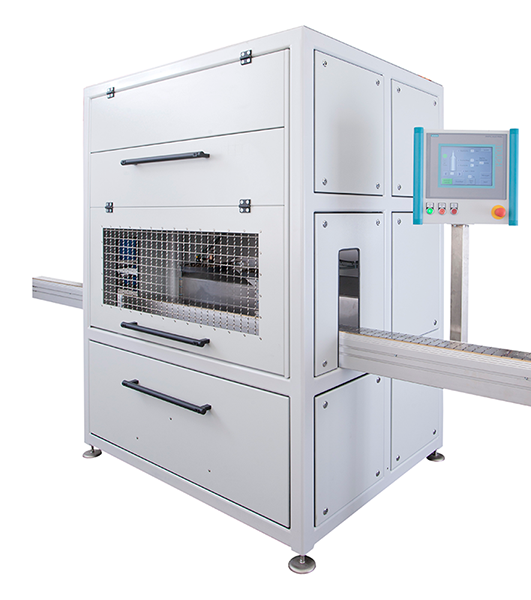

Flame Pre-Treatment Machines with One Burner

Mechanical
Features:
60 cycles at 120 mm product height
35 cycles at 320 mm product height

CNC
Features:
70 cycles at 120 mm product height
50 cycles at 250 mm product height
40 cycles at 350 mm product height

Flame Pre-Treatment Machines with Two Burners

CNC
Features:
100 cycles at 120 mm product height
80 cycles at 250 mm product height
60 cycles at 320 mm product height
