UVitro® Appropriate Facilities
Our Pyrosil® / silica pre-treatment systems can also be used for the patented UVitro ® process. A prerequisite for this, however, is the licence acquisition of the licence holder.

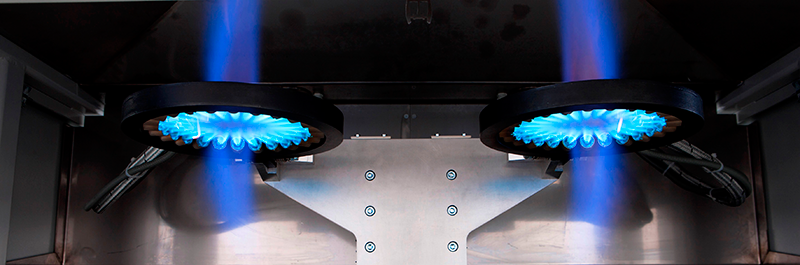

The UVitro® process provides a further improvement in long-term adhesion of UV inks on glass items. In this method glass items are moved on a linear conveyor from a flame treatment station to a silane flame treatment station. Thus cold-end-treatments are removed before a very thin but very dense and adherent layer with high surface energy is applied to the print product.
In addition to more scratch resistant and more intensely colored printing results, this method offers the further advantage of time and cost savings, as the energy- and time-consuming drying of the printed articles in lehrs is no longer necessary.
What We Can Offer You:

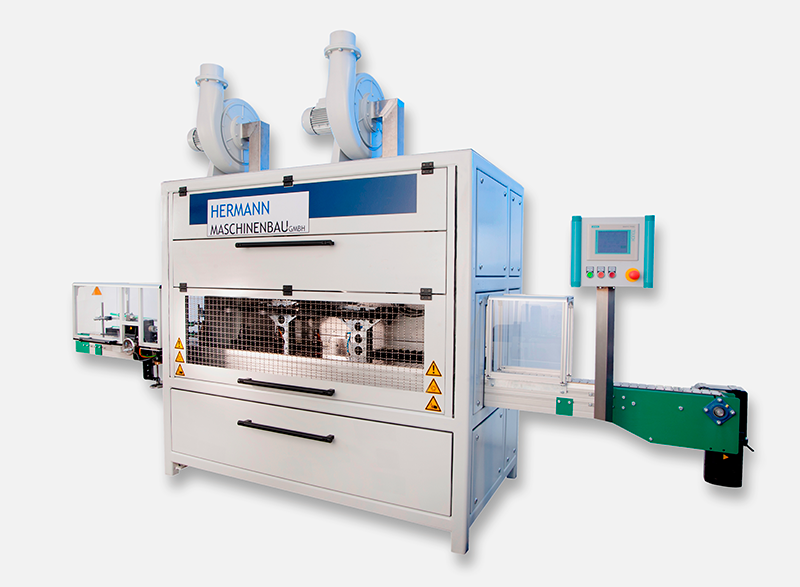

UVitro® Appropriate Facilities with Two Burners
Mechanical
Features:
60 cycles at 120 mm product height
35 cycles at 320 mm product height
CNC
Features:
70 cycles at 120 mm product height
50 cycles at 250 mm product height
40 cycles at 350 mm product height
UVitro® Appropriate Facilities with Four Burners
CNC
Features:
100 cycles at 150 mm product height
75 cycles at 320 mm product height
60 cycles at 350 mm product height
